Bayonet, Circular, Miniature, Quick Disconnect, Connectors
Connectors, Electrical, Bayonet (Circular, Miniature, Quick Disconnect, Environment Resisting)
Federal Stock Code: 5935 (Search for Other Documents with FSC 5935)

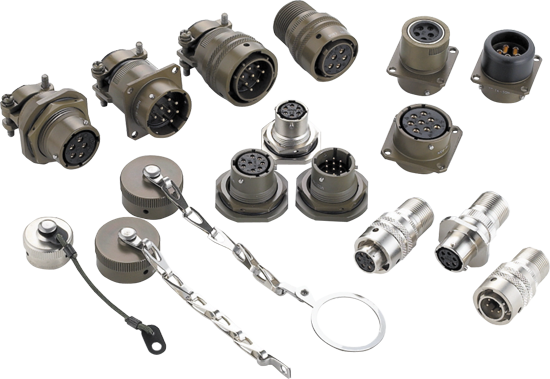

The MIL-DTL-26482 (formerly known as MIL-C-26482) specification covers the general requirements for two series of environment resisting, quick disconnect, miniature, circular electrical connectors, and their accessories. Each series contains hermetic receptacles. This connector is widely used in military and industrial applications due to its proven reliability, small size, and range of options. The bayonet mechanism provides fast and easy coupling, especially when the connector is situated in an awkward or hard to reach location. The following documents provide design details required for the fabrication of connectors accordance with MIL-DTL-26482/MIL-C-26482:
Federal Stock Code: 5935 (Search for Other Documents with FSC 5935)
The MIL-DTL-26482 (formerly known as MIL-C-26482) specification covers the general requirements for two series of environment resisting, quick disconnect, miniature, circular electrical connectors, and their accessories. Each series contains hermetic receptacles. This connector is widely used in military and industrial applications due to its proven reliability, small size, and range of options. The bayonet mechanism provides fast and easy coupling, especially when the connector is situated in an awkward or hard to reach location. The following documents provide design details required for the fabrication of connectors accordance with MIL-DTL-26482/MIL-C-26482:
Controlling Specification
| Specification | Description |
|---|---|
| MIL-C-26482 | CONNECTORS, ELECTRICAL, (CIRCULAR, MINIATURE, QUICK DISCONNECT, ENVIRONMENT RESISTING), RECEPTACLES AND PLUGS, GENERAL SPECIFICATION FOR |
| MIL-DTL-26482 | CONNECTORS, ELECTRICAL, (CIRCULAR, MINIATURE, QUICK DISCONNECT, ENVIRONMENT RESISTING), RECEPTACLES AND PLUGS,GENERAL SPECIFICATION FOR |
CONNECTORS, SOLDER CONTACT, BAYONET COUPLING (SERIES 1)
| Specification | Description |
|---|---|
| MS3110 | Connectors, Receptacle, Electrical, Solder Type, Wall Mounting, Bayonet Coupling, Series 1, Classes E, F, J and P |
| MS3111 | Connectors, Plug, Electrical, Solder Type, Cable Connecting, Bayonet Coupling, Series 1, Classes E, F, J, and P |
| MS3112 | Connectors, Receptacle, Electrical, Box Mounting, Flange, Bayonet Coupling, Solder Contact, Series 1 |
| MS3113 | Connectors, Receptacle, Electrical, Series 1, Solder Type, Solder Mounting, Bayonet Coupling, Class H |
| MS3114 | Connectors, Receptacle, Electrical, Series 1, Solder Type, Jam Nut Mounting, Bayonet Coupling, Classes E, F, H, and P |
| MS3116 | Connectors, Plug, Electric, Series 1, Solder Type, Straight, Bayonet Coupling |
| MS3119 | Connectors, Receptacle, Electrical, Thru-Bulkhead Mounting, Flange, Bayonet Coupling, Series 1 |
CONNECTORS, CRIMP CONTACT, BAYONET COUPLING (SERIES 1)
| Specification | Description |
|---|---|
| MS3120 | Connectors, Receptacle, Electrical, Crimp Type, Wall Mounting, Flange, No. 4 Holes, Bayonet Coupling, Series 1, Classes E, F and P |
| MS3121 | Connectors, Plug, Electrical, Crimp Type, Cable-Connecting, Bayonet Coupling, Series 1, Classes E, F and P |
| MS3122 | Connectors, Receptacle, Electrical, Crimp Type, Box Mounting, Flange, No. 4 Holes, Bayonet Coupling, Series 1 |
| MS3124 | Connectors, Receptacle, Electrical, Crimp Type, Rear Mounting, Jam Nut, Bayonet Coupling, Series 1, Classes E, F and P |
| MS3126 | Connectors, Plug, Electrical, Crimp-Type, Straight, Bayonet Coupling, Series 1, Classes E, F and P |
| MS3127 | Connectors, Receptacle, Electrical, Series 1, Crimp Type, Box Mounting, Flange, No. 4/6 Holes, Bayonet Coupling, Class E |
| MS3128 | Connector, Receptacle, Electrical, Crimp Type, Wall Mounting, No. 4/6 Holes, Bayonet Coupling, Series 1, Classes E, F and P |
CONNECTORS, SOLDER CONTACT, BAYONET COUPLING (SERIES 2)
| Specification | Description |
|---|---|
| MS3440 | Connectors, Receptacle, Electrical, Narrow Flange Mount, Bayonet Coupling, Solder Pin Contact, Class H, Series 2 |
| MS3442 | Connectors, Receptacle, Electrical, Wide Flange Mount, Bayonet Coupling, Solder Pin Contact, Class H, Series 2 |
| MS3443 | Connectors, Receptacle, Electrical, Solder or Welded Flange Mount, Bayonet Coupling, Solder Pin Contact, Class H, Series 2 |
| MS3449 | Connectors, Receptacle, Electrical, Series 2, Single Hole Mount, Bayonet Coupling, Solder Pin Contact, Class H |
CONNECTORS, SOLDER CONTACT, BAYONET COUPLING (SERIES 2)
| Specification | Description |
|---|---|
| MS3470 | Connectors, Receptacle, Electrical, Series 2, Crimp Type, Narrow Flange Mount, Bayonet Coupling, Classes A, D, L, T, W and Z |
| MS3471 | Connectors, Receptacle, Electrical, Series 2, Crimp Type, Cable Connecting, Bayonet Coupling, Classes A, D, L, T, W and Z |
| MS3472 | Connectors, Receptacle, Electric, Series 2, Crimp Type, Wide Flange Mounting, Bayonet Coupling, Classes A, D, L, T, W and Z |
| MS3473 | Connectors, Receptacle, Electrical, Series II, Hermetic, Solderless, Solder Mounting, Bayonet Coupling, Class N |
| MS3474 | Connectors, Receptacle, Electrical, Series 2, Crimp Type, Rear Mounting Jam Nut, Bayonet Coupling, Classes A, D, L, T, W and Z |
| MS3475 | Connectors, Plug, Electrical, RFI Shielded, Series 2, Crimp Type, Bayonet Coupling, Classes D, L, T, W and Z |
| MS3476 | Connectors, Plug, Electric, Series 2, Crimp Type, Bayonet Coupling, Classes A, D, L, T, W and Z |
| MS3477 | Connectors, Receptacle, Electrical, Series II, Hermetic, Solderless, Box Mounting, Bayonet Coupling, Class N |
| MS3479 | Connectors, Receptacle, Electrical, Series II, Hermetic, Solderless, Rear Mounting, Jam Nut, Bayonet Coupling, Class N |
CONNECTOR ACCESSORIES
| Specification | Description |
|---|---|
| MIL-STD-1669 | Insert Arrangements for MIL-DTL-26482 Environment Resisting, Circular, Electrical Connectors |
| MS3115 | Connectors, Receptacle, Electrical, Dummy Stowage, Bayonet Coupling, for MIL-DTL-26482 Connectors, Series 1 and 2 |
| MS3180 | Cover, Protective, Electrical, Connector Plug, Bayonet Coupling for MIL-C-26482 Connectors |
| MS3181 | Cover, Protective, Electrical Connector Receptacle, Bayonet Coupling for MIL-C-26482 Connectors |
| MS3186 | Connector, Mounting to Connectors, Mounting Nuts, Plain Hexagon |
| MS3187 | Plug, End Seal, for MIL-DTL-26482, MIL-DTL-5015, MIL-C-81703 and MIL-DTL-83723 Electrical Connectors |
| MS3481 | Tool, Connector Assembly, for MIL-DTL-26482 Connectors. |
